PL-10 Magnetizing Coil

$1,035.00$1,046.00

SKU: PL10 Category:

Description

The Parker PL-10 Portable Magnetizing Coil (9 7/8″ inside diameter) is designed for magnetic particle inspection of ferrous metal parts. The coil allows for the use of either dry powder or wet fluorescent inspection media and may be used for demagnetizing as well.

The coil is molded in a tough black polyurethane material and comes equipped with the standard foot switch or a optional hand switch and 10′ power cord. The sealed electrical connection box has a 2″ x 5″ flat base allowing the coil to stand in a vertical position.

The coil is designed for a 50% duty cycle, and is equipped with thermal overload protection. The 115 VAC version operates from a standard 115 VAC, 60 Hz power source. The 230 VAC version operates from a 230VAC, 50-60 Hz power source.

230VAC model available with CE certification at an additional cost

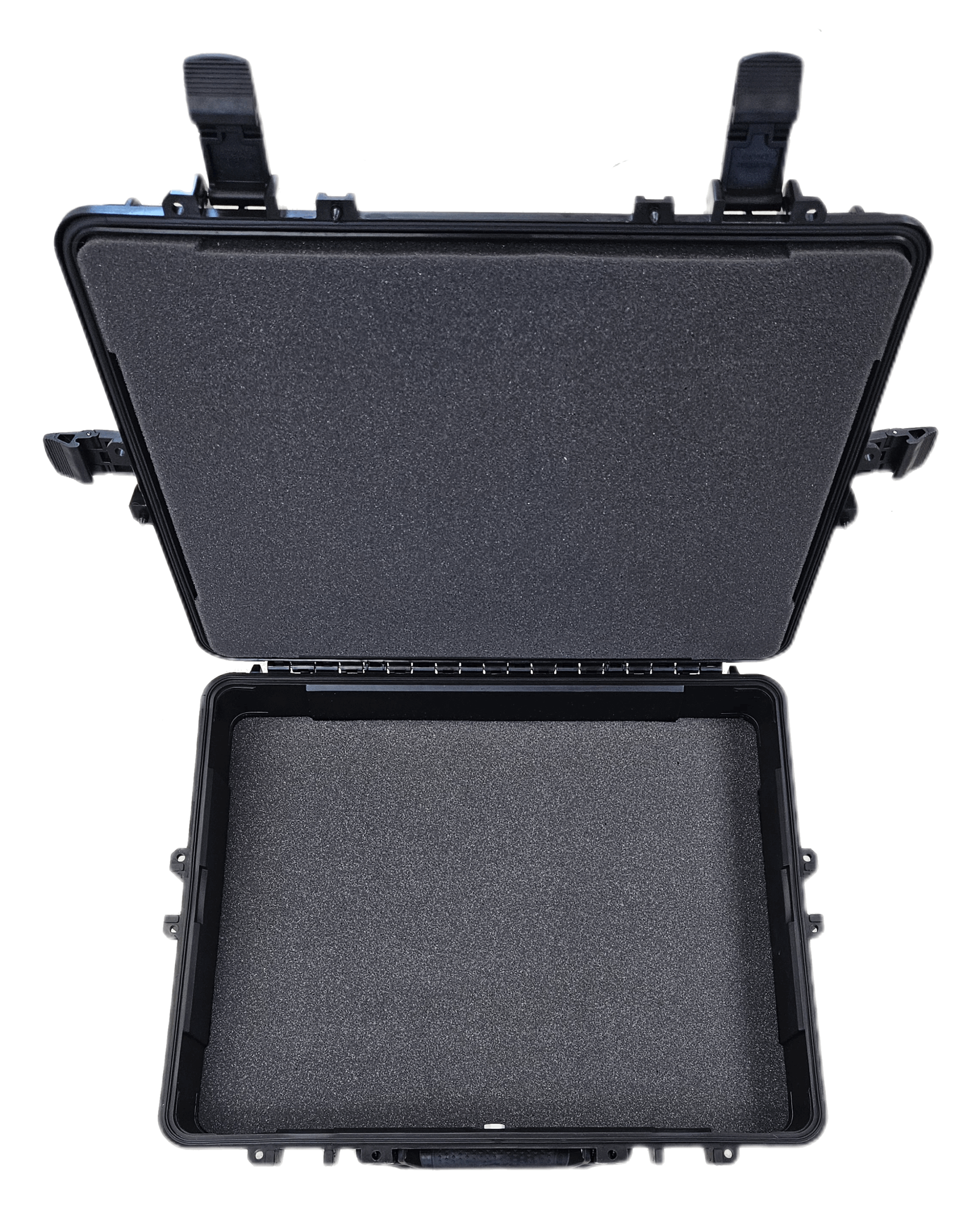

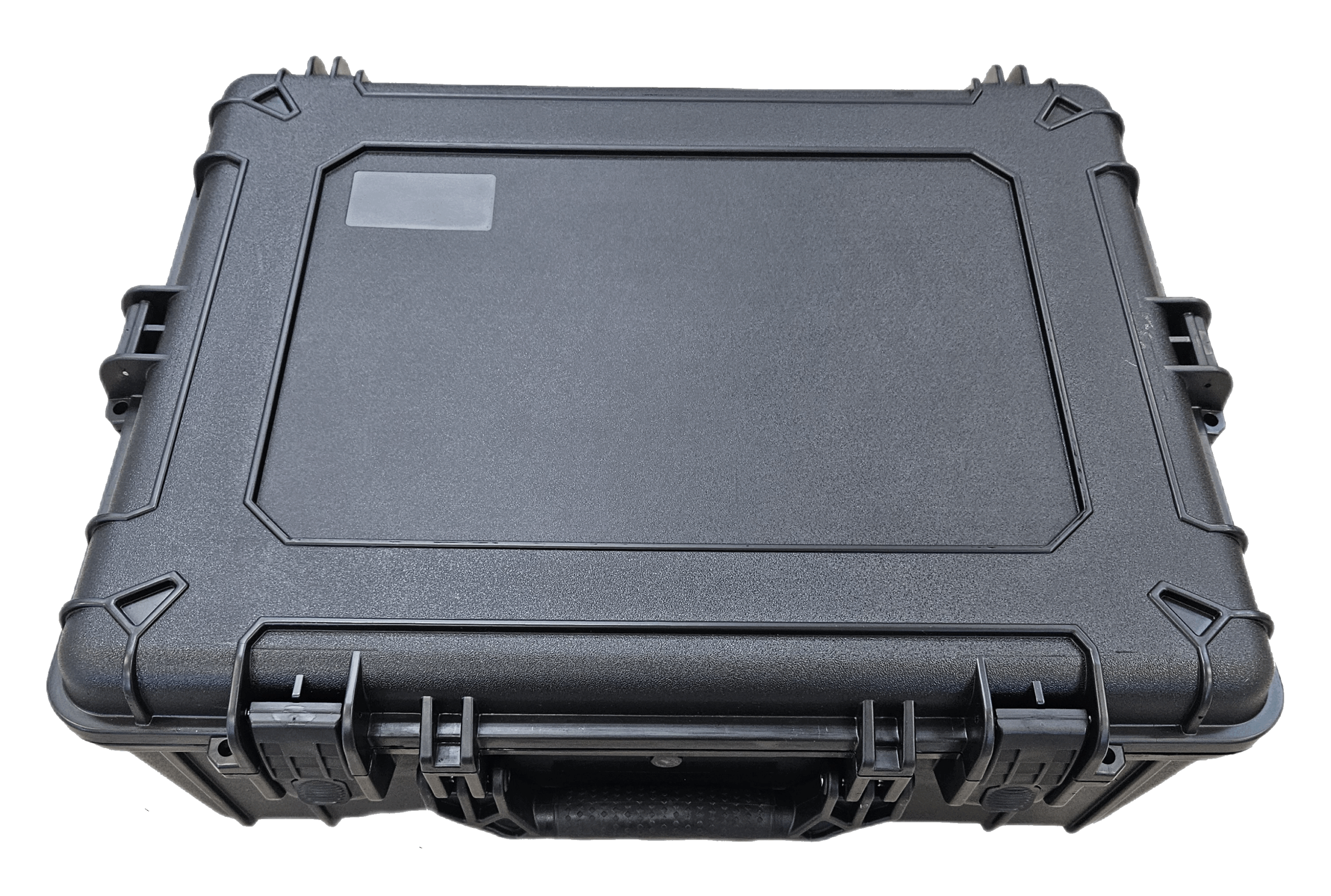

A plastic carrying case is included.
